Foulden Maar

Foulden Promo

Have you wondered what diatomite is, where it is found in Dunedin and around the world, and what fossils have been found at the Foulden Maar diatomite deposit? Read on below and find out more!



Diatoms are microscopic algae (between two micrometers and half a millimeter in size) that live in water and soil across the planet. [1] Diatoms create a silica structure, effectively a glass house, or exoskeleton, and come in many shapes and sizes. [2,3] There can be millions of diatoms per cubic metre, and these are responsible for producing more than 20% of earth’s oxygen every year. [1,2,4] Diatoms evolved in the distant past, and appeared in the fossil record about 135 million years ago. [3] Researchers estimate that there are more than 20 000 species of diatoms on the planet, many of them still unknown to science. [1,2,4] Because only some types of diatoms thrive in certain conditions, such as acidic/alkaline, hot/cold, or salt/fresh water, they can be environmental indicators, which give us insight into the water conditions during the time that they were living. [4]

Diatoms bloom every spring when conditions are ideal for photosynthesis and reproduction. [5] Seasonal diatom blooms create layers at the bottom of lakes and oceans as the diatoms die. Many dead insects, leaves, flowers, fish, and other animals fall into those lakes and oceans between layers of diatoms. [6] Over time, more layers accumulate and pressure builds to compress the layers into rock. If the environment is anoxic, or low in oxygen, the organic materials from these dead insects, leaves, flowers, fish, and other animals that were between the layers will be preserved.

At the Foulden Maar site, the fossils have been preserved in anoxic conditions between these layers of diatoms without physical disturbances from scavengers or rivers. This means that the preservation of the fossils at this site includes intact specimens with fine structures and detail; this allows researchers to identify the species that lived 23 million years ago in Otago. [6]

 Folden1

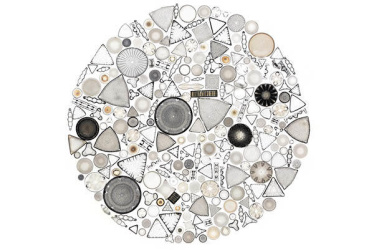

Image: Diatoms from Oamaru mounted on a microscope slide. Otago Museum Collection. GL3852. Photo by Kane Fleury, © Otago Museum



What is diatomite or diatomaceous earth?

Diatomite, also called diatomaceous earth, is a sedimentary rock made of many layers of ancient dead diatoms. It is mostly composed of silica and water. The rock is easy to break apart and has low density, so dry samples will float on water. Because diatomite is made of microscopic hollow silica exoskeletons, it can be used to filter microbial contaminants from liquids and as a mild abrasive. [7,8,9]

Each diatomite deposit is unique, and has a physical and chemical signature based on the diatom species that makes up the rock and other materials from the area. [7]

Diatomite is used primarily for producing filters and absorbents. [8,9] Approximately 59% of diatomite consumed in the United States is used to make filtration media, 40% is used for absorbents, fillers and other industrial applications, and 1% is for biomedical use. [9] There are alternatives to using diatomite for filtration media or absorbents, including: perlite, limestone, and silica sand. [8,9]  Other industrial applications can include using diatomite as an additive for stock feed, pesticide or as fertiliser.



Where is diatomite found?

Diatomite deposits are found in former lakes and seas across the world. Mining of diatomite occurs in many countries including the United States, Denmark, China, South Africa, Peru, Mexico, Japan, France, Argentina, Turkey, Spain, Germany, and Australia. [9] Australia has recorded 76 diatomite deposits, [7] which are mostly concentrated in Western Australia and New South Wales. [8] There are also diatomite deposits in Victoria, Queensland, and Tasmania. [7]

There are an estimated one billion metric tonnes of diatomite in global deposits, which would take hundreds of years to mine at the current global rate of three million tonnes per year. [10] Of this reserve, about 25% is located in the United States, which currently dominates the industry.

Within New Zealand, diatomite deposits occur near Bannockburn, [11] Oamaru, [17,18] Gisborne, [11] Northland, [18] Auckland, [18] South Auckland, [18] Waikato, [17,18] and Rotorua. [17,18] Locally, there are several diatomite deposits in which scientific collecting have taken place, including Frasers Gully in Kaikorai Valley, [11,12] Killmog Hill, [11] Double Hill, [12] Hindon Maar, [13] and Foulden Maar. [6,11,14,15,16,23,24,25,27,28,29,30]



Foulden Maar reconstruction by Paula Peeters

Image: Reconstruction of the 23-million-year-old fossil lake deposit Foulden Maar in Otago, New Zealand. Drawing by Paula Peeters, CC BY 4.0



What kind of fossils have been found in diatomite?

Internationally, extraordinary fossils have been found within diatomite deposits including mammals, fish, amphibians, reptiles, insects, seeds, leaves, and pollen. At one site in the Saint-Bauzile region of France, rodents, a horse, a cow, a pig, and a rhino, with their entire skeletons and details of skin and fur structures, had been preserved. This deposit offered a glimpse into the community that surrounded this lake during the late Miocene period, about 7.5 million years ago. [19]

In the Pisco Formation in Peru, hundreds of whale specimens (some with evidence of soft tissue) were found in a marine diatomite deposit. [20]

Diatomite fossil deposits and assemblages are extraordinarily interesting because of the numbers of fossils, and the diversity of what is preserved. In some cases, researchers can reconstruct the entire community of fish, insects, and plants that lived in the area based on the fossil discoveries. [6,19,21]



What kind of fossils have been found at Foulden Maar?

The fossil discoveries from Foulden Maar are significant in helping us understand the evolution and distribution of plants, fish, and invertebrates 23 million years ago; a period of time when much of the land that we currently know as New Zealand was submerged in the ocean, and the climate was much warmer than it is now. [16,22,23] Foulden Maar is unique in showing Miocene period flora and fauna with a high level of detail and preservation. [22,24,25] This is a period when many of New Zealand’s indigenous fauna as we know them today started to evolve. [11,26] The fossil assemblages that are within the maar can help us with paleo-reconstructions of ecosystems from 23 million years ago; a time when there were no glaciers in New Zealand or in Antarctica. So far, the maar has shown us fossil fish and an incredible diversity of insects and plants, including leaves, flowers, and pollen. [6,24,25]

Galaxias effusus whole

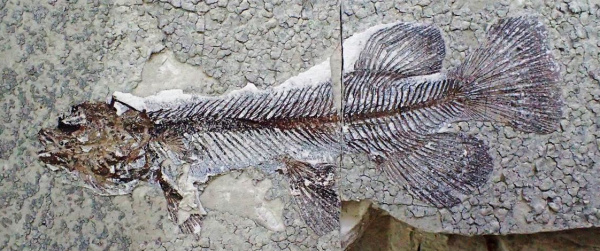

Image: Galaxias effusus fossil from Foulden Maar, Otago, New Zealand. Photo by Stella McQueen, CC BY-SA 4.0



Highlights of fossils from the Maar

The diatomite deposit at Foulden Maar holds a significant number of well-preserved fossils that are not likely to be found anywhere else within New Zealand, or the world. [6] These fossils enrich our understanding of New Zealand’s natural history, with many more still buried and preserved for future discoveries. Of the fossils recovered from Foulden Maar, the oldest whitebait fish fossils from 23 million years ago were a significant discovery. They are some of the most well-preserved and intact specimens ever found, and enabled scientists to name a new extinct species, Galaxias effusus, based on the discovery. [11]

Many new species of plants and insects are still being scientifically classified from the fossil material recovered at the site. An extinct plant species, Fouldenia staminosa, was described from a fossil flower found in Foulden Maar that had preserved pollen and reproductive structures. [14] Fossil flowers with associated pollen are very rare worldwide, with only 40 examples known before the Foulden Maar discoveries. [14] Additionally, the preservation of fossil leaves found at the maar have revealed cellular details of the leaves and its veins, along with the insects that lived on the plant. [6,15] By studying these fossils and plant pollen (a field of study called palynology), researchers are able to deduce the climate and ecological associations that existed at the time. [6,14,22,23]



Foulden Maar has been the site of many of New Zealand’s first discoveries for fossil invertebrates including:

  • The first fossil spiders from New Zealand were found here in four compression fossils, and these had sufficient detail to note differences in their anatomy. Fossil spiders are extremely rare, and difficult to identify as most other specimens are encased in amber. [27]
  • The first fossil record of Flat bugs (Aneurus) in the Southern Hemisphere was also found at the maar site. This discovery links when the insect lived in the region and the evolutionary history of this group living in rainforest habitats. [28]
  • The first fossil record of Dracula ants (Amblyoponinae) in the Southern Hemisphere, and one of the few specimens of fossil ants in New Zealand, was found at the maar site. Ants in this group display an unusual set of anatomical and behavioral characteristics; they live as subterranean predators, and sometimes drink the haemolymph, or blood, of their larvae. One species (Fulakora saundersi) is endemic to New Zealand. [29]
  • Four other ant groups were also found, which either were reported for the first time as fossils, or were the first Southern Hemisphere fossil records of their genera. These fossil taxa provide evidence that the few native ants in the current New Zealand fauna are the survivors of a different, and more diverse group, of warm-temperate to subtropical ants that lived in the Miocene era. [30]

The well-preserved fossils of spiders, stoneflies, dragonflies, termites, flies, caddis flies, true bugs, beetles, wasps, ants, and bees that have been discovered at Foulden Maar provide a unique opportunity for researchers to study the invertebrate biodiversity of ancient New Zealand. [6,24,25] Most of New Zealand’s insect fossil knowledge has originated from this site, and the diversity of insect fossils from the marr is unparalleled. [6]



 Interested in knowing more about Foulden Maar and the surrounding issues?  On Lee Lau, Assistant Collection Manager, Natural Science, and writer of this blog post, will be on Radio One 91 FM on Wednesday, 31 July at 8.30am

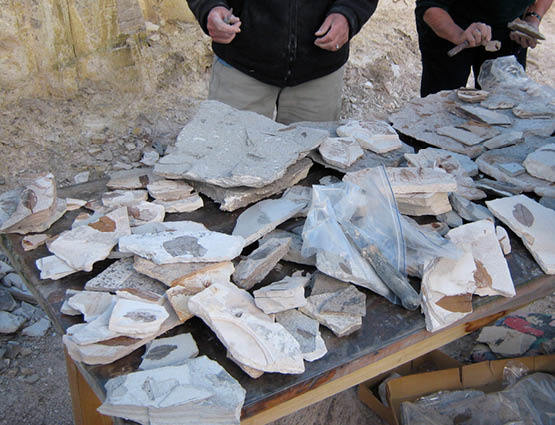

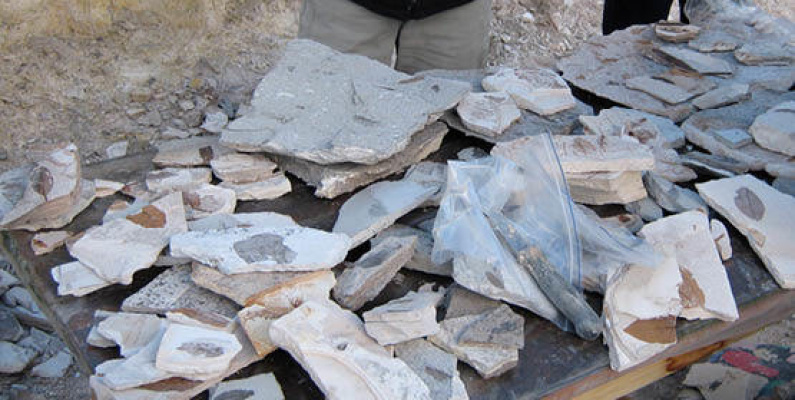

 Top image: Sorting plant fossils found at the early Miocene fossil deposit, Foulden Maar, Otago, New Zealand. Photo by Daphne Lee, CC BY 4.0



Sources

[1] Diatoms of North America. diatoms.org

[2] Alverson A. (2014) The Air You're Breathing? A Diatom Made That. www.livescience.com/46250-teasing-apart-the-diatom-genome.html

[3] Sims PA, Mann DG, Medlin LK. (2006) Evolution of the diatoms: insights from fossil, biological and molecular data. Phycologia 45: 361–402. DOI: 10.2216/05-22.1

[4] Australian Online Coastal Information – Diatom species composition. ozcoasts.org.au/indicators/biophysical-indicators/diatom_species_composition/

[5] Tiselius R and Kuylenstierna M. (1996) Growth and decline of a diatom spring bloom: phytoplankton species composition, formation of marine snow and the role of heterotrophic dinoflagellates. Journal of Plankton Research 18:2, 133-155

[6] Lee DE, Kaulfuss U, Conrad JG, Bannister JM, Lindqvist JK. (2016) Biodiversity and palaeoecology of Foulden Maar: an early Miocene Konservat-Lagerstätte deposit in southern New Zealand. Alcheringa 40:4, 525-541. DOI: 10.1080/03115518.2016.1206321

[7] Crespin I (1945) A study of Australian diatomites with special reference to their possible value as filter media. Commonwealth of Australia, Bulletin 7, Misc Series 3.

[8] New South Wales Department of Primary Industries. www.resourcesandgeoscience.nsw.gov.au/__data/assets/pdf_file/0011/237818/Diatomite.pdf

[9] Crangle RDJ. (2019) Diatomite: United States Geological Survey, Mineral Commodity Summaries. www.usgs.gov/centers/nmic/diatomite-statistics-and-information

[10] Crangle RDJ. (2016) Diatomite: United States Geological Survey, Minerals Yearbook. www.usgs.gov/centers/nmic/diatomite-statistics-and-information

[11] Lee DE, McDowall RM, Lindqvist JK. (2007) Galaxias fossils from Miocene lake deposits, Otago, New Zealand: The earliest records of the Southern Hemisphere family Galaxiidae (Teleostei). Journal of the Royal Society of New Zealand 37:3, 109-130. DOI: 10.1080/03014220709510540

[12] T Reichgelt, WA Jones, DT Jones, JG Conran, JM Bannister, EM Kennedy, DC Mildenhall & DE Lee (2014) The flora of Double Hill (Dunedin Volcanic Complex, Middle–Late Miocene) Otago, New Zealand. Journal of the Royal Society of New Zealand. 44:4, 105-135. DOI: 10.1080/03036758.2014.923476

[13] Möller AL, Kaulfuss U, Lee DE, Wappler T. (2017) High richness of insect herbivory from the early Miocene Hindon Maar crater, Otago, New Zealand. PeerJ 5:e2985. DOI: 10.7717/peerj.2985

[14] Bannister JM, Lee DE, Raine JI. (2005) Morphology and palaeoenvironmental context of Fouldenia staminosa, a fossil flower with associated pollen from the Early Miocene of Otago, New Zealand. New Zealand Journal of Botany 43:2, 515-525. DOI: 10.1080/0028825X.2005.9512972

[15] Harris AC, Bannister JM, Lee DE. (2007) Fossil scale insects (Hemiptera, Coccoidea, Diaspididae) in life position on an angiosperm leaf from an early Miocene lake deposit, Otago, New Zealand, Journal of the Royal Society of New Zealand 37:1, 1-13. DOI: 10.1080/03014220709510531

[16] Pole M, Douglas B, Mason G. (2003) The terrestrial Miocene biota of southern New Zealand. Journal of the Royal Society of New Zealand 33:1, 415-426. DOI: 10.1080/03014223.2003.9517737

[17] New Zealand Industrial Minerals Map. GNS Science. gns.cri.nz/Home/Our-Science/Energy-Futures/Minerals/New-Zealands-minerals/Industrial-minerals-located-in-NZ

[18] Christie AB, Barker RG. (2013) Mineral, coal and petroleum resources: production, exploration and potential. In Dymond JR ed. Ecosystem services in New Zealand – conditions and trends. Manaaki Whenua Press, Lincoln, New Zealand. 300-339 www.landcareresearch.co.nz/__data/assets/pdf_file/0009/77049/2_3_Christie.pdf

[19] Métais G and Sen S. (2018) The late Miocene mammals from the Konservat-Lagerstätte of Saint-Bauzile (Ardèche, France) Comptes Rendus Palevol 17:2018, 479–493. DOI: 10.1016/j.crpv.2018.05.001

[20] Esperante R, Brand LR, Chadwick AV, Poma O. (2015) Taphonomy and paleoenvironmental conditions of deposition of fossil whales in the diatomaceous sediments of the Miocene/Pliocene Pisco Formation, southern Peru—A new fossil-lagerstätte.  Palaeogeography, Palaeoclimatology, Palaeoecology 417: 337-370. DOI: 10.1016/j.palaeo.2014.09.029

[21] Wilson MVH. (1980) Eocene lake environments: Depth and distance-from-shore variation in fish, insect, and plant assemblages. Palaeogeography, Palaeoclimatology, Palaeoecology 32: 21-44. DOI: 10.1016/0031-0182(80)90029-2

[22] Fox ERS, Wilson GS, Lee DE. (2016) A unique annually laminated maar lake sediment record shows orbital control of Southern Hemisphere midlatitude climate across the Oligocene-Miocene boundary. GSA Bulletin 128 (3-4): 609–626. DOI: 10.1130/B31349.1

[23] Reichgelt T, Kennedy EM, Conran JG, Lee WG, Lee DE. (2019) The presence of moisture deficits in Miocene New Zealand. Global & Planetary Change 172, 268-277. DOI: 10.1016/j.gloplacha.2018.10.013

[24] Kaulfuss, U. (2013). Geology and Paleontology of Foulden Maar, Otago, New Zealand (Thesis, Doctor of Philosophy). University of Otago. Retrieved from http://hdl.handle.net/10523/3838

[25] Kaulfuss U, Lee DE, Barratt BIP, Leschen RAB, Larivière MC, Dlussky GM, Henderson IM,  Harris AC. (2014) A diverse fossil terrestrial arthropod fauna from New Zealand: evidence from the early Miocene Foulden Maar fossil Lagerstätte. Lethaia 48, 299–308.

[26] Hand SJ, Lee DE, Worthy TH, Archer M, Worthy JP, Tennyson AJD, Salisbury SW, Scofield RP, Mildenhall DC, Kennedy EM, Lindqvist JK. (2015) Miocene Fossils Reveal Ancient Roots for New Zealand’s Endemic Mystacina (Chiroptera) and Its Rainforest Habitat. PLoS ONE 10(6): e0128871. DOI:10.1371/journal.pone.0128871

[27] Selden PA, Kaulfuss U. (2019) Fossil arachnids from the earliest Miocene Foulden Maar Fossil-Lagerstätte, New Zealand. Alcheringa: An Australasian Journal of Palaeontology 43:1, pages 165-169. DOI: 10.1080/03115518.2018.1450446

[28] Kaulfuss U, Wappler T, Heiss E, Larivière, MC. (2011) Aneurus sp. from the early Miocene Foulden Maar, New Zealand: the first Southern Hemisphere record of fossil Aradidae (Insecta: Hemiptera: Heteroptera). Journal of the Royal Society of New Zealand 41, 279-285. DOI: 10.1080/03036758.2011.559665

[29] Kaulfuss U, Harris AC, Conran JG, Lee DE. (2014) An early Miocene ant (subfam. Ambyloponinae) from Foulden Maar: the first fossil Hymenoptera from New Zealand. Alcheringa 38, 568–574. DOI: 10.1080/03115518.2014.928181

[30] Kaulfuss U, Dlussky GM. (2016) Early Miocene Formicidae (Amblyoponinae, Ectatomminae, Dolichoderinae, Formicinae and Ponerinae) from the Foulden Maar fossil lagerstätte, New Zealand, and their biogeographic relevance. Journal of Paleontology 89, 1043–1055.
